Santong Weiye's commitment to excellence shines through in our Ultramicro Flat Coil Vertical Winding Machine. This advanced solution showcases seamless automation, precise winding capabilities, and superior quality for ultramicro flat coils. As your trusted partner, we provide innovative solutions that cater to the evolving needs of industries.

Step into the future of industrial technology with Santong Weiye. Our Ultramicro Flat Coil Vertical Winding Machine represents a paradigm shift in winding efficiency, making us the preferred choice for businesses seeking advanced, reliable, and precise winding solutions.

Five reasons why you should choose us.

1. rich experience: we have a group of 20 years coil, winding machine and automation equipment experience in the technical team, we have accumulated a wealth of industry experience and technical knowledge. Our professional team is always committed to providing customers with the highest quality products and services to ensure that customers get the maximum value in the production process.

2. Quick response: We provide one-stop service to meet customers' individual needs in a short time. Our sales and technical support team is on call 24 hours a day to solve all kinds of problems for customers and ensure the smooth operation of the production line.

3. high-quality products: our production of winding machines with high quality, high performance, high stability and other characteristics, by Huawei, DJI, BYD and other well-known enterprises. Our equipment can not only meet the customer's production needs, but also bring higher production efficiency and product quality.

4. the depth of customization services: we provide a full range of customization services, according to the actual needs of customers, tailored for customers the most suitable winding machine solutions. Our engineers will work closely with customers to ensure that the performance and functionality of the equipment to fully meet customer expectations.

5. perfect after-sales service: we attach great importance to the customer's after-sales service experience. We provide comprehensive after-sales support, including equipment installation, commissioning, training, maintenance and other services. Our professional and technical team will solve problems for customers in the first time to ensure the normal operation and use of equipment. Our professional technical team will solve the problems at the first time to ensure the normal operation and use of the equipment

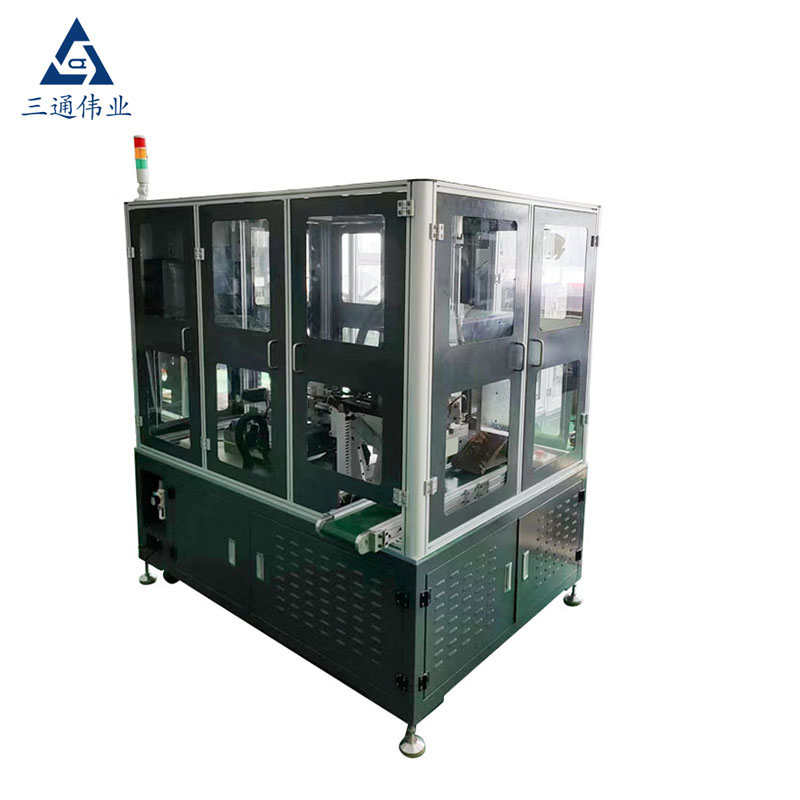

Ultramicro Flat Coil Vertical Winding Machine Details

Santong Weiye was founded in 2014 in Shenzhen, Guangdong Province, China, which enjoys the title of "Capital of Innovation", in 2019, the production plant moved from Shenzhen to Tangxia, Dongguan, the company has a number of technical backbone with more than 15 years of experience in the work of wire-winding equipment and laser equipment, Shenzhen SANTONGWEIYE Technology Co. Ltd. is a manufacturer of automation equipment and coils integrating R&D, production, sales and service of coil winding machines and flat coils. Our flat coil products, vertical coil winding machines and automation equipment have good quality and advantageous price, covering part of the European and American markets. We are looking forward to be your long-term partner in China.

Ultramicro Flat Coil Vertical Winding Machine Description

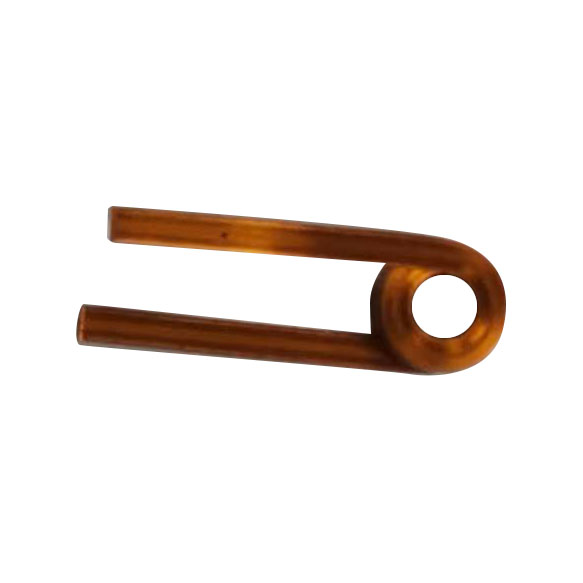

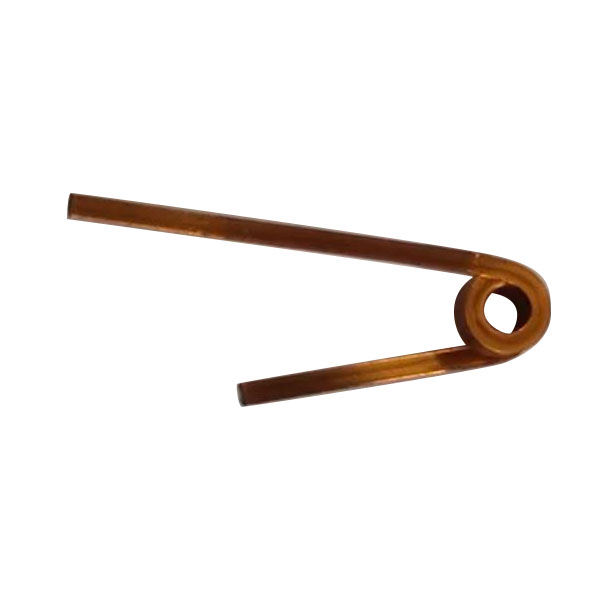

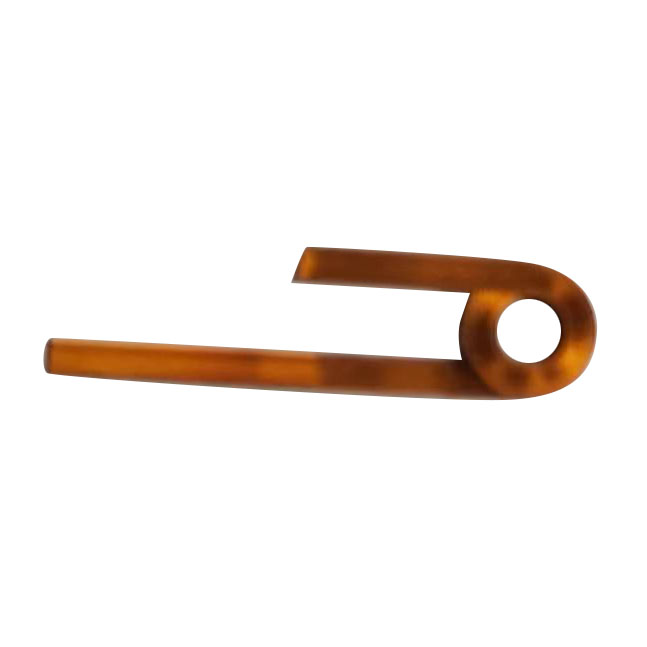

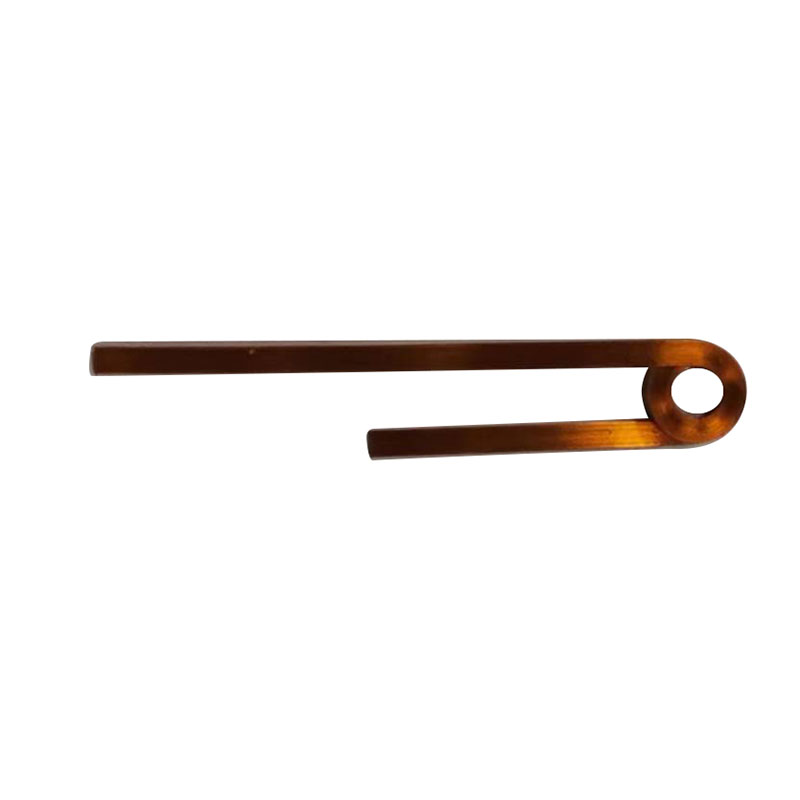

1. 3T-801D ultra thin flat coil vertical winding machine is controlled by computer and driven by servo. It can produce various ultra thin flat coil products with thickness of 0.05mm to 0.5mm and width of 0.5mm to 3.0mm;

2. The mechanical commissioning of 3T-801D ultra fine flat coil vertical winding machine is simple, convenient and fast, and only needs to replace the mold;

3. The main shaft of 3T-801D ultra fine flat coil vertical winding machine is processed by imported high-precision CNC lathe, with the precision of less than 0.001 mm, and the thin production line is very stable;

4. 3T-801D ultramicro flat coil vertical winding machine adopts windos operation interface and 10 inch LCD screen, with clear and intuitive picture, simple operation and easy learning;

5. 3T-801D ultramicro flat coil vertical winding machine can save the adjustment parameters of products of various specifications, which is simple and convenient to use;

6. The power system is an imported high-precision servo motor, which is matched with the CNC control system to make the mechanical system run more accurately and stably;

Technical parameters

Serial number	Project	Technical parameters
1	Processing wire diameter	Thickness (0.05~0.5)*Width (0.5~3.0) Width/Thickness Ratio <10x
2	direction of winding	Clockwise versus counterclockwise
3	Maximum working stroke of the row of wires	40mm
4	The power of the spool motor, the	AC servo 400W
5	Winding spool setting range	0.1°--359.9°
6	camshaft motor power	AC servo 750W
7	Winding spool setting range	0.1°--359.9°
8	power of the spool motor	AC servo 400W
9	Setting range for spooling	0.1°--359.9°
10	Number of coils	1-50 laps
11	Winding speed (output per hour)	300 --- 900PCS/H varies according to the wire specifications and turns
12	Operating power supply	AC 220V
13	Machine specification (L*W*H)	950*980*1650mm
14	Machine weight	200kg
15	Total power	1.55KW
