The high quality Square Hole Flat Coil Vertical Winding Machine by Santong Weiye showcases cutting-edge technology in the realm of coil winding. Established in 2014 in Shenzhen, Guangdong, China, and later moving to Tangxia, Dongguan, our company brings over 20 years of collective expertise in coil, winding machine, and automation equipment. Our unwavering commitment is to provide top-notch quality and services, ensuring optimal value for our customers throughout the production process.

Five reasons why you should choose us.

1. rich experience: we have a group of 20 years coil, winding machine and automation equipment experience in the technical team, we have accumulated a wealth of industry experience and technical knowledge. Our professional team is always committed to providing customers with the highest quality products and services to ensure that customers get the maximum value in the production process.

2. Quick response: We provide one-stop service to meet customers' individual needs in a short time. Our sales and technical support team is on call 24 hours a day to solve all kinds of problems for customers and ensure the smooth operation of the production line.

3. high-quality products: our production of winding machines with high quality, high performance, high stability and other characteristics, by Huawei, DJI, BYD and other well-known enterprises. Our equipment can not only meet the customer's production needs, but also bring customers higher production efficiency and product quality.

4. the depth of customization services: we provide a full range of customization services, according to the actual needs of customers, tailored for customers the most suitable winding machine solutions. Our engineers will work closely with customers to ensure that the performance and functionality of the equipment to fully meet customer expectations.

5. perfect after-sales service: we attach great importance to the customer's after-sales service experience. We provide comprehensive after-sales support, including equipment installation, commissioning, training, maintenance and other services. Our professional and technical team will solve problems for customers in the first time to ensure the normal operation and use of equipment.

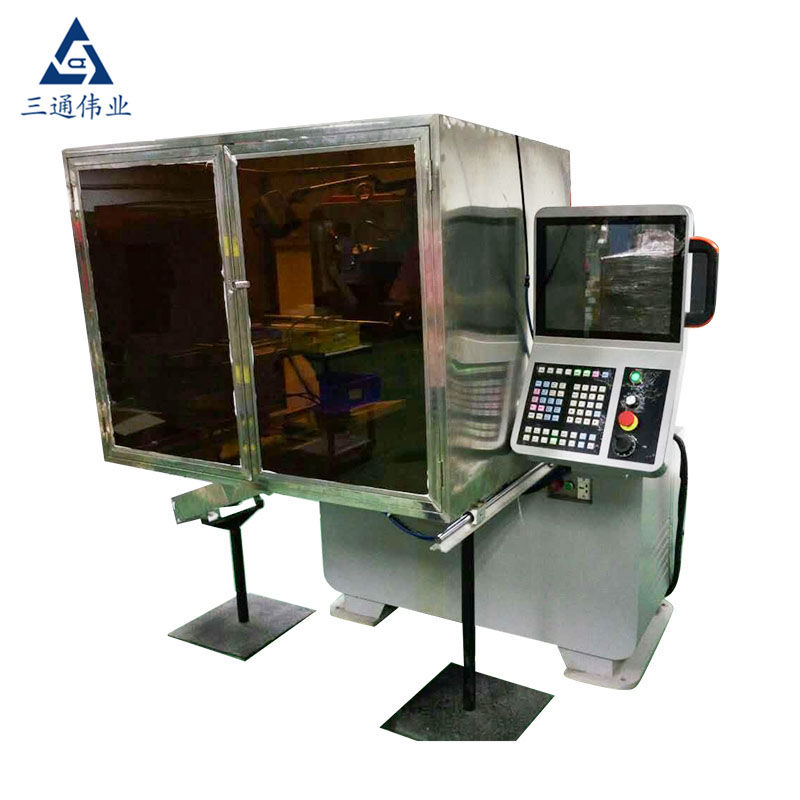

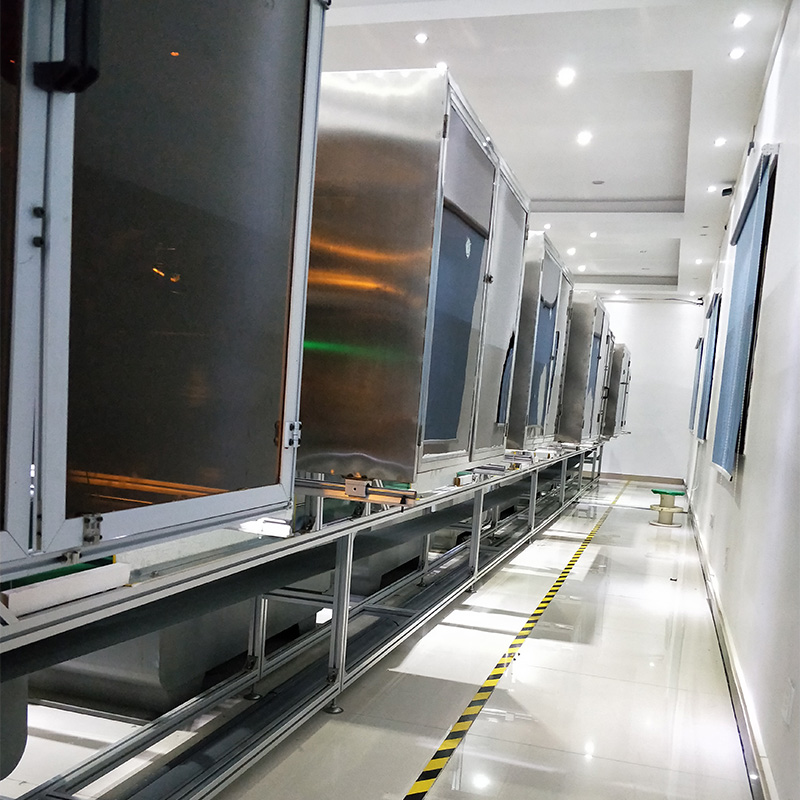

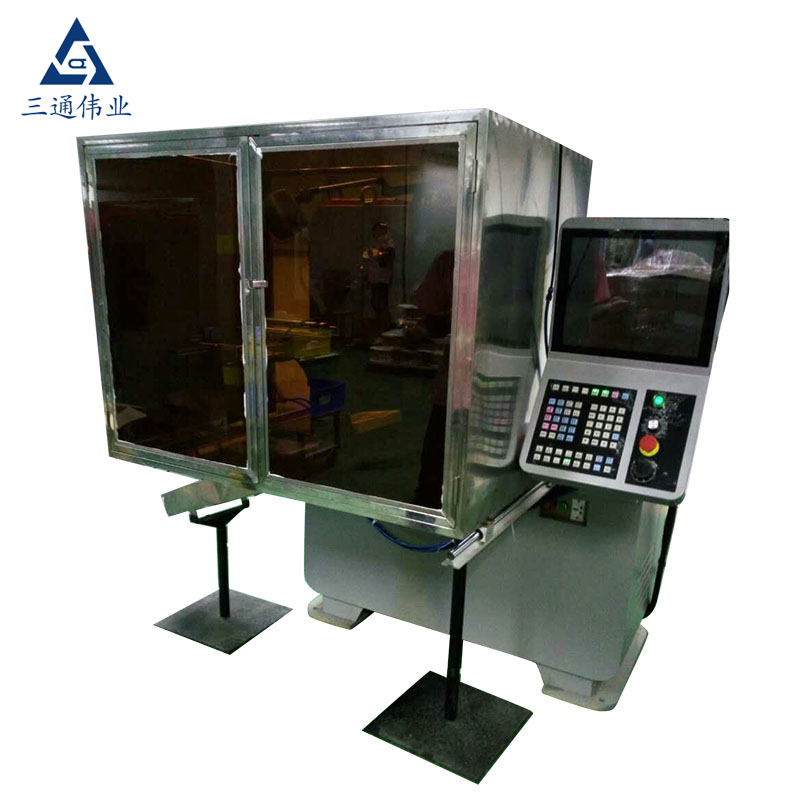

Square Hole Flat Coil Vertical Winding Machine Details

Shenzhen Santong Weiye Technology Co., Ltd. was founded in 2014 in Shenzhen, Guangdong Province, China, which enjoys the title of "Capital of Innovation", and the production factory was moved to Tangxia, Dongguan, from Shenzhen in 2019, the company has a number of technical backbone with more than 15 years of experience in the work of the winding equipment and laser equipment, Shenzhen Santong Weiye Technology Co. Ltd. is a manufacturer of automation equipment and coils integrating R&D, production, sales and service of winding machine equipment and flat coils, our flat coil products, vertical winding machines and automation equipment have good quality and advantageous price, covering part of the European and U.S. markets. We are looking forward to be your long-term partner in China.

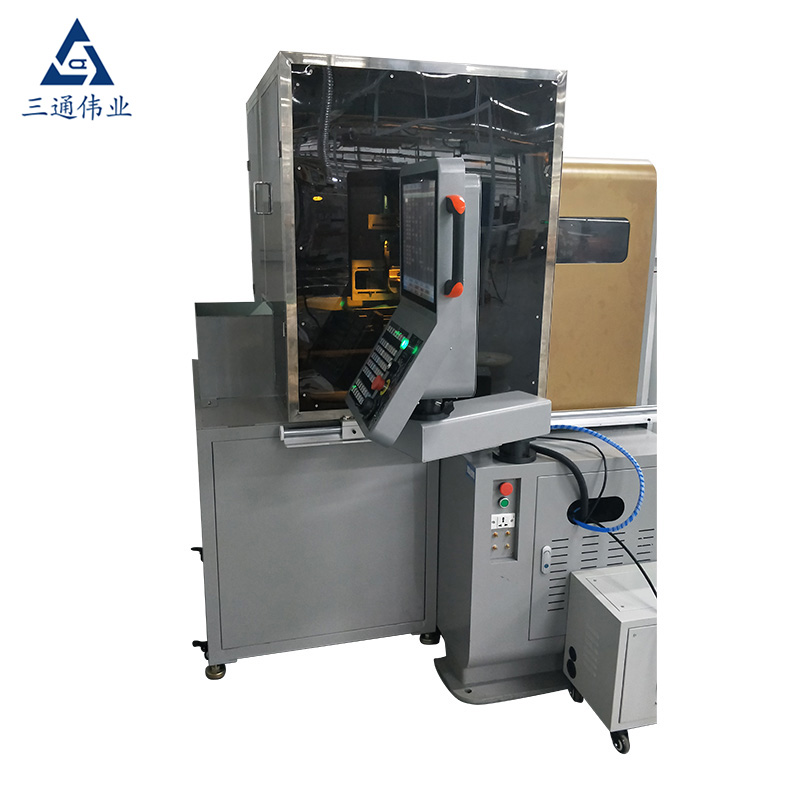

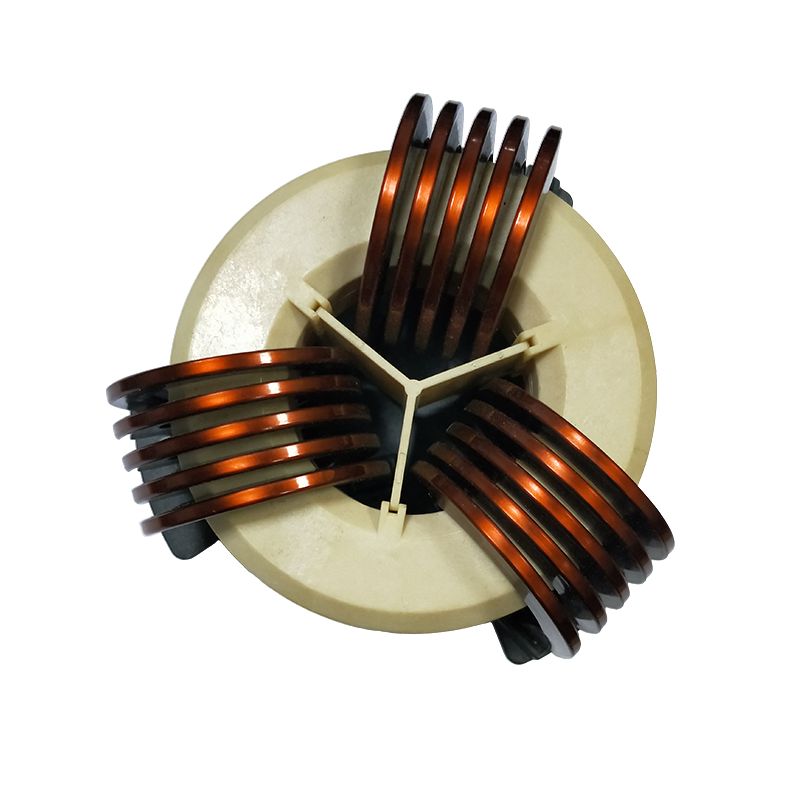

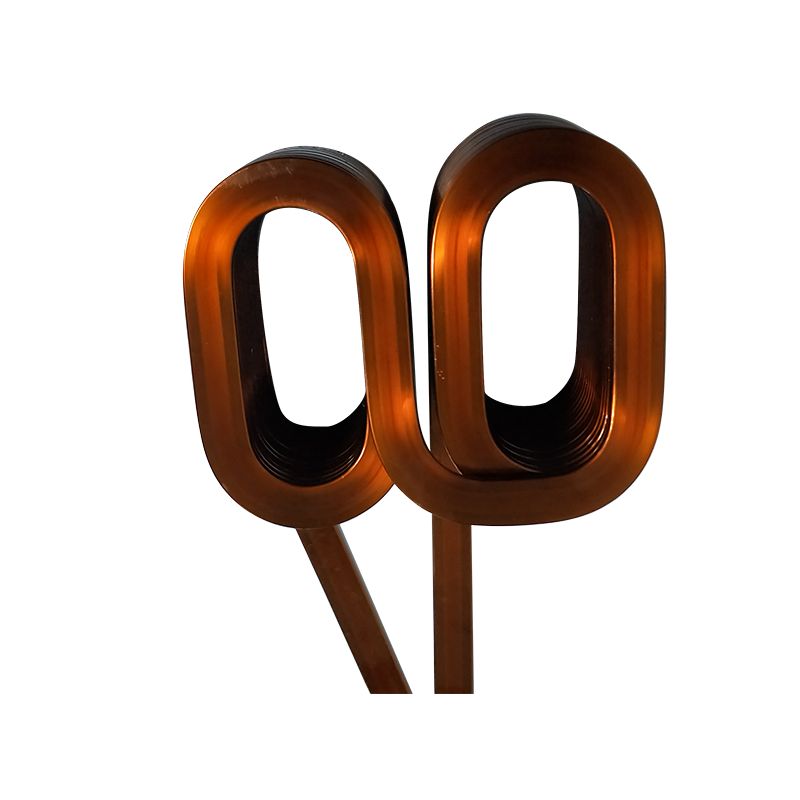

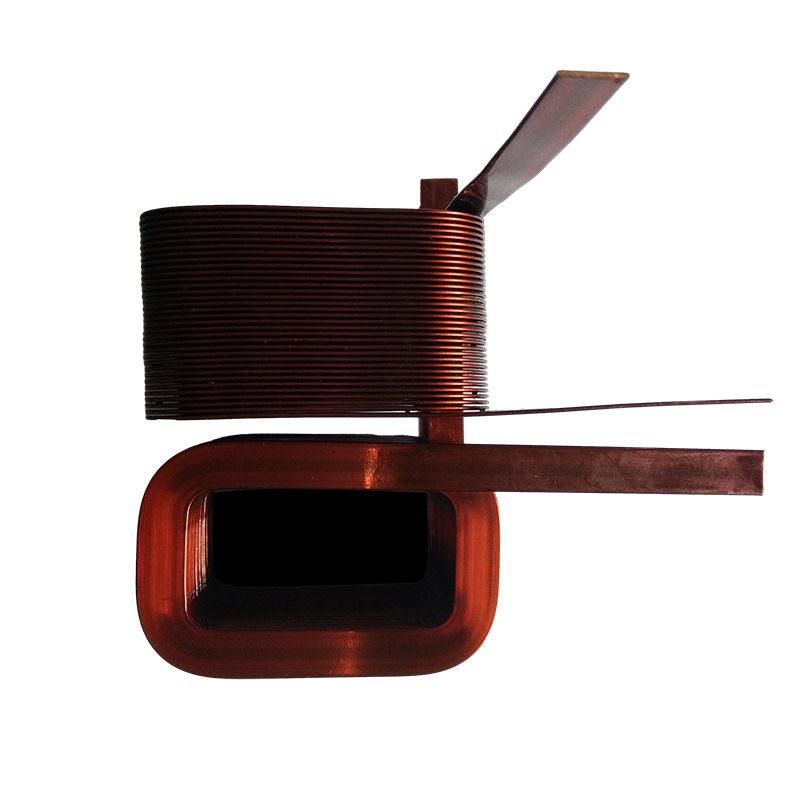

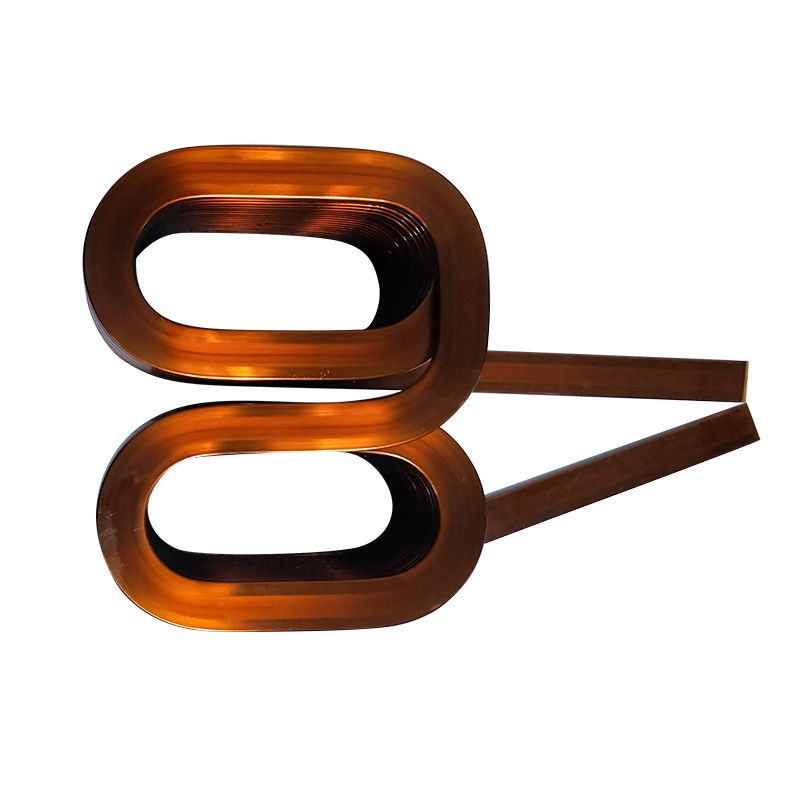

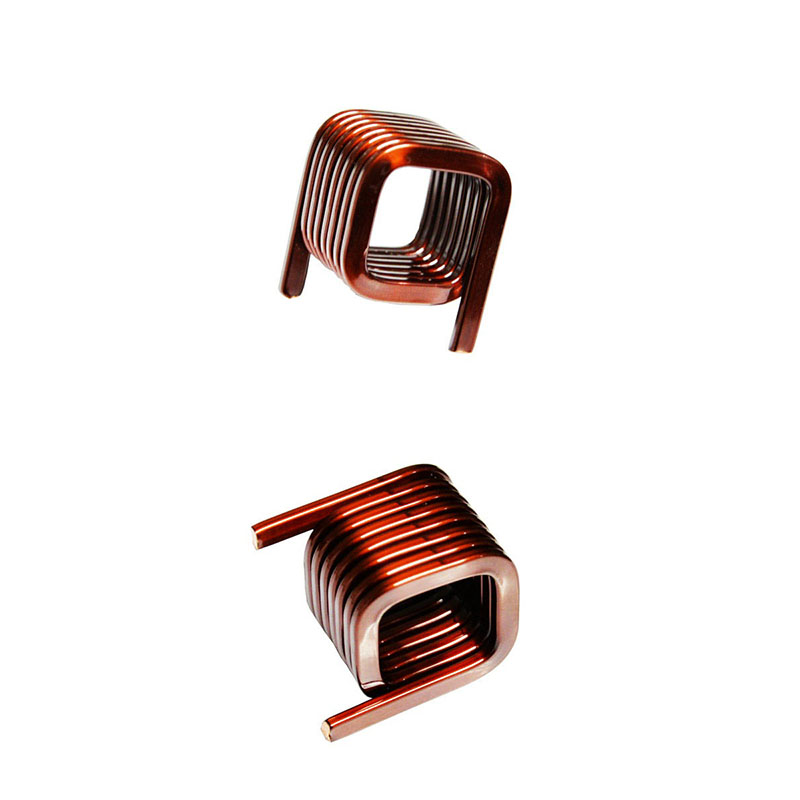

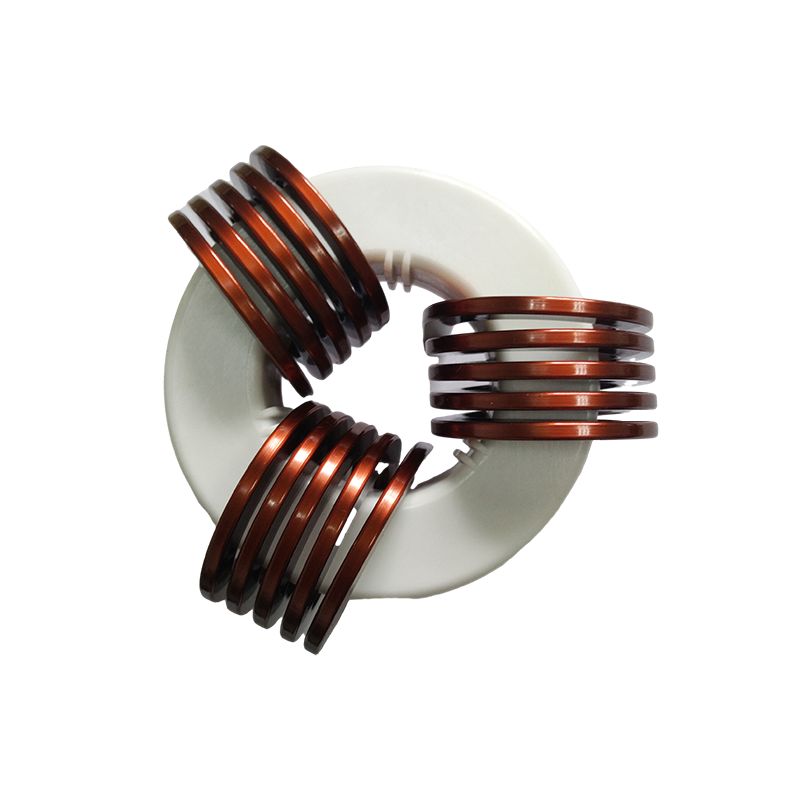

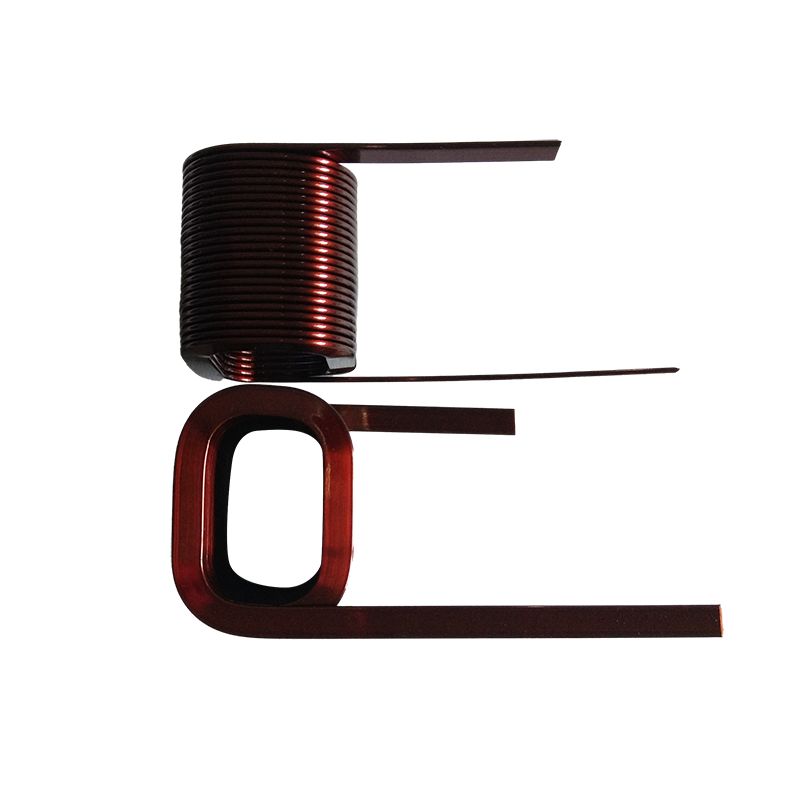

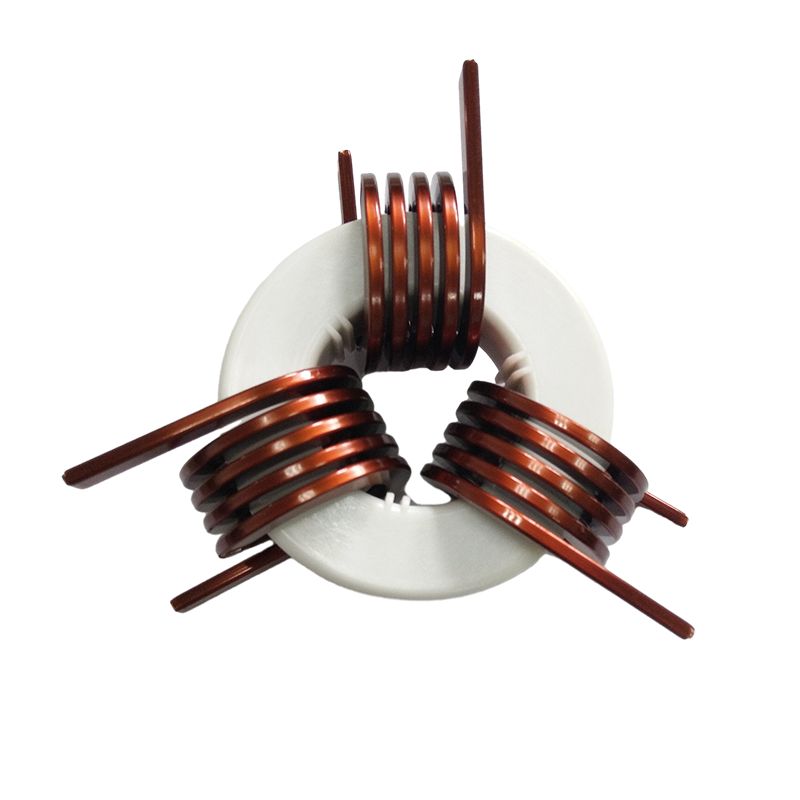

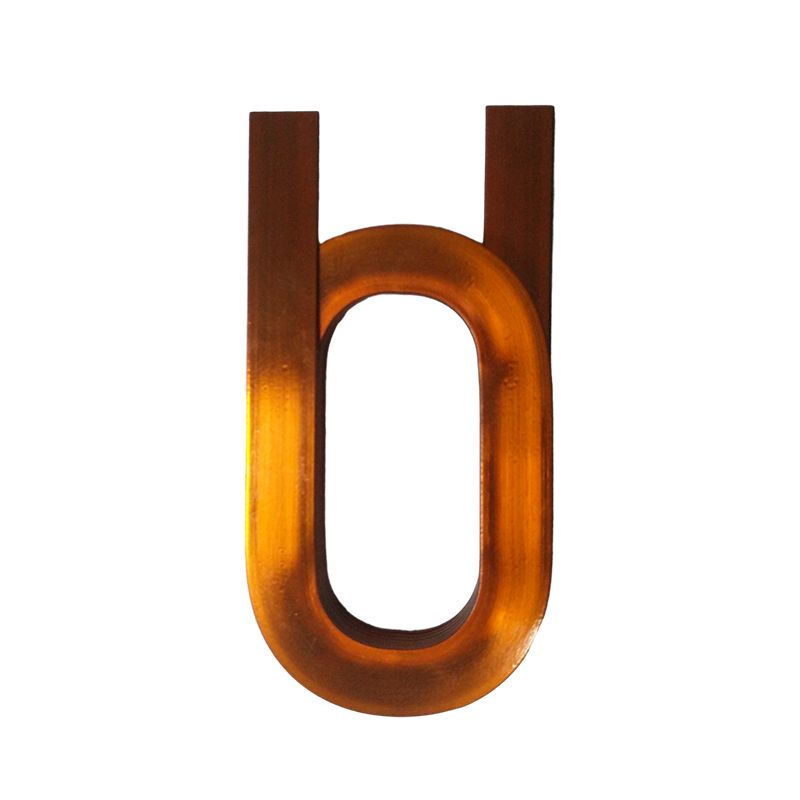

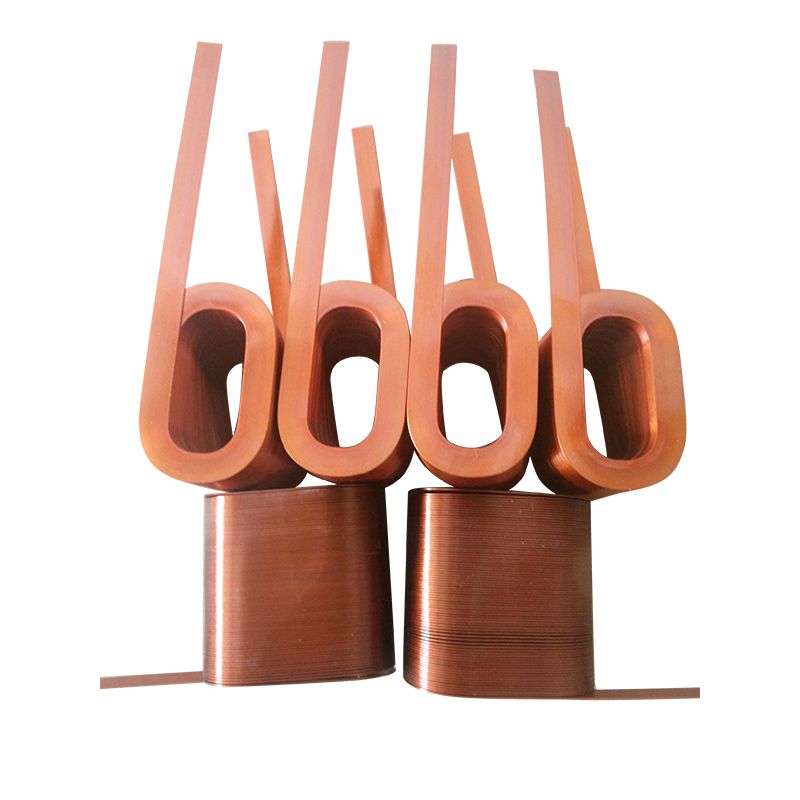

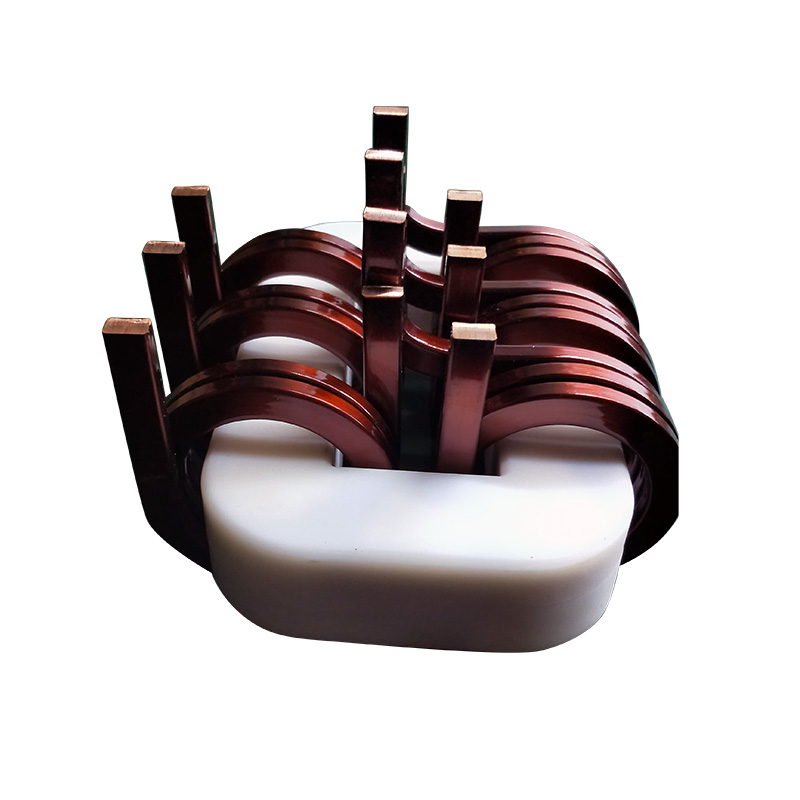

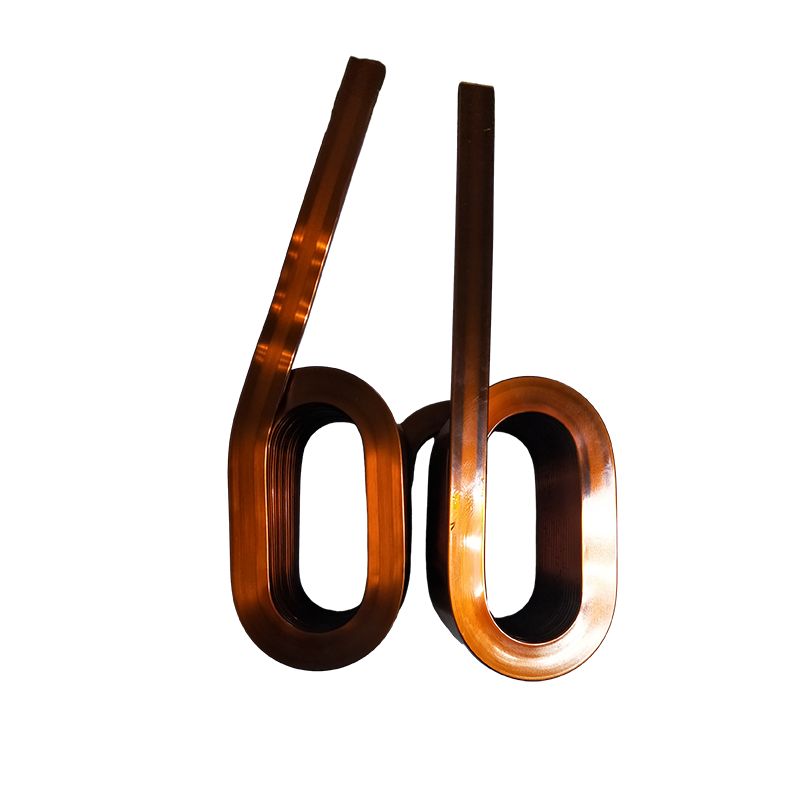

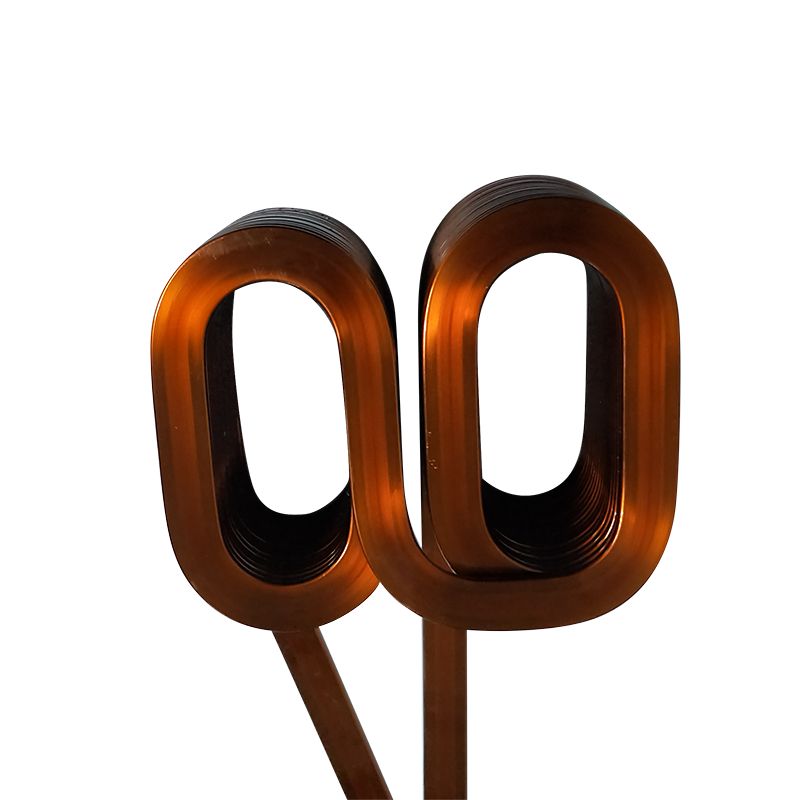

1. 3T-804 oval/square flat wire vertical winding machine is a very practical and effective equipment for making inductance, transformer and inverter coils. It can wind various square and oval flat coils.

2. 3T-804 oval/square flat wire vertical winding machine is easy, convenient and fast to debug, just need to replace the mold;

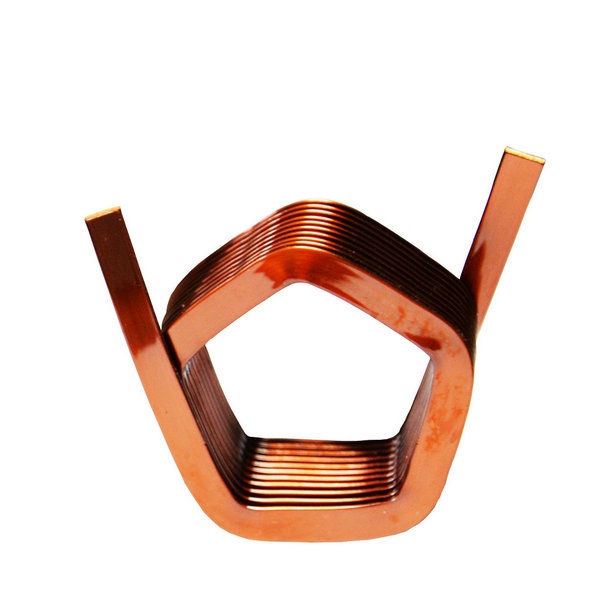

3. 3T-804 oval/square flat wire vertical winding machine uses computer control and servo drive to produce various vertical square hole, triangle and oval flat coil products with a thickness of 0.4mm to 3.5mm and a width of 2.0mm to 10.0mm (the section area of the original wire width * thickness is within 30mm2 when the flat wire winding machine is winding);

4. The machine can adjust the same specification wire without changing the mold, only need to adjust the parameter.

5. The machine can be adjusted to different wire sizes by simply changing the molds.

6. Multi-station movement, flat coils can be formed and picked up directly on the machine (can also be customized to add machines).  people).

7. Windos operation interface and 12 inch LCD display are adopted, with clear and intuitive picture and simple operation  Ease of learning.

8. It can save the parameters of each specification product, and it is easy and convenient to call.

9. The power system is a high-precision servo motor, which is matched with the CNC control system to make the mechanical system operate more accurately and stably;

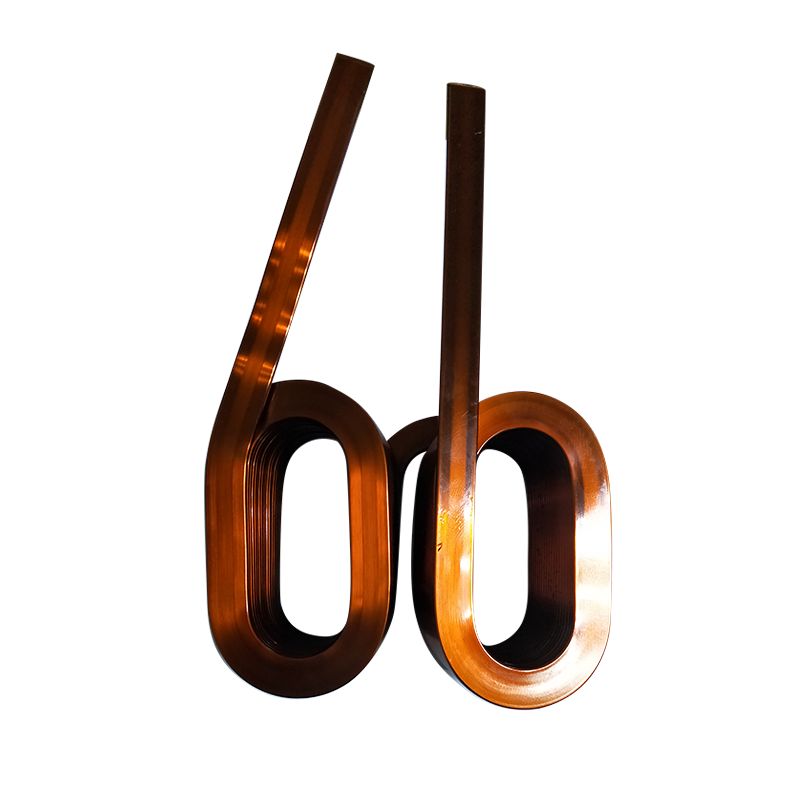

10. The machine has produced 7.5 * 0.45, 4.0 * 0.8, 1 * 5 and other products in large quantities in the factory, which has been highly recognized by customers, and the stability of the machine is more guaranteed. HW7.5 * 0.45 * 80T elliptical vertical winding products are the first to be supplied. HW's three current mainstream suppliers have all used our equipment to wind samples and passed certification.

Square Hole Flat Coil Vertical Winding Machine Parameter

serial number	sports event	Technical Parameters
1	Wire Diameter	Thickness (0.4~3.5mm) * width (2.0~10) The width/thickness ratio of flat line is less than 15 times, and the sectional area of wire is less than 30 mm2
2	Winding direction	Clockwise vs. Counterclockwise
3	Maximum working stroke of the row of wires	200mm
4	Power of bobbin winding motor	AC servo 1000W
5	Winding spool setting range	0.1°--359.9°
6	Camshaft motor power	AC servo 2700W
7	Camshaft setting range	0.1°--359.9°
8	Power of spool motor	AC servo 2700W
9	Spool setting range	0.1°--359.9°
10	Power of pallet shaft motor	AC servo 400W
11	Pallet axis setting range	-20--8000
12	Number of coils	1-100 laps
13	Winding speed (output per hour)	100-1200PCS/H will vary according to wire specifications and turns
14	Operating power	AC 380V
15	Machine specification (L*W*H)	2200*1300*1900mm
16	Machine weight	750kg
17	total power	6.8KW (can be customized according to different requirements)
